Vertical Mill Table Hardfacing Machine
Vertical Mill Table Hardfacing Machine
Offline hardfacing machines and a rebuilding service for vertical roller mill grinding tables, table liners and large circular wear components.

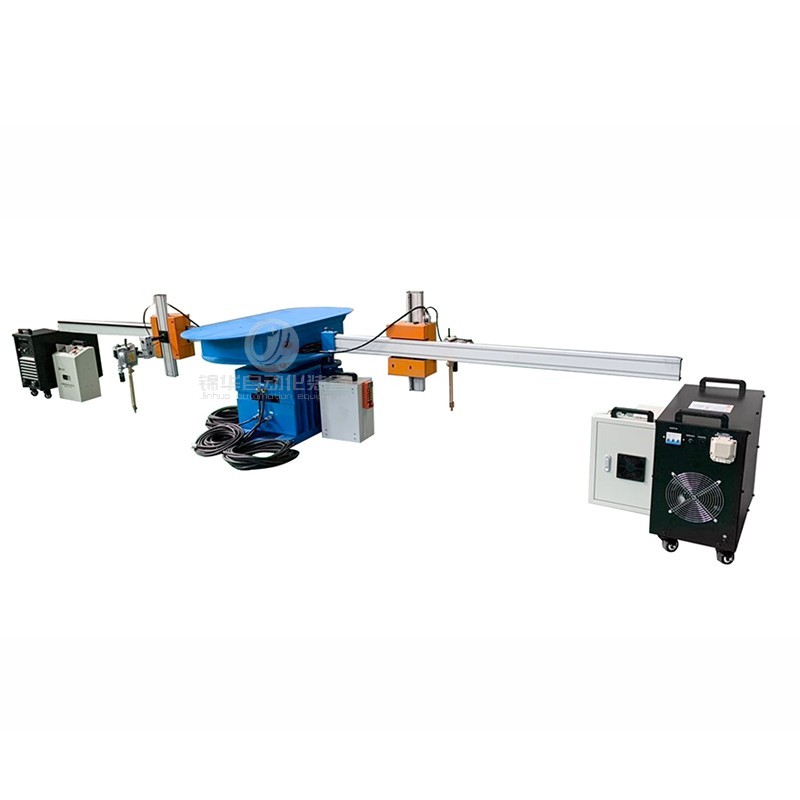

JH-360DEG Grinding Table Hardfacing Machine
A compact rotary hardfacing system for offline repair and rebuilding of large grinding tables, grinding discs and other circular wear components, with heavy-duty rotary support, variable-speed rotation and rotary current transmission.

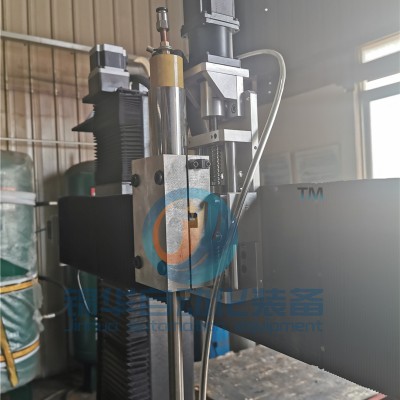

JH-05PL Hot-Wire TIG Valve Cladding Machine
A flexible automated welding system for precision overlay welding of valve bodies, internal bores, seat pockets and other complex internal surfaces, using a Hot-Wire TIG process with servo positioning and AVC.

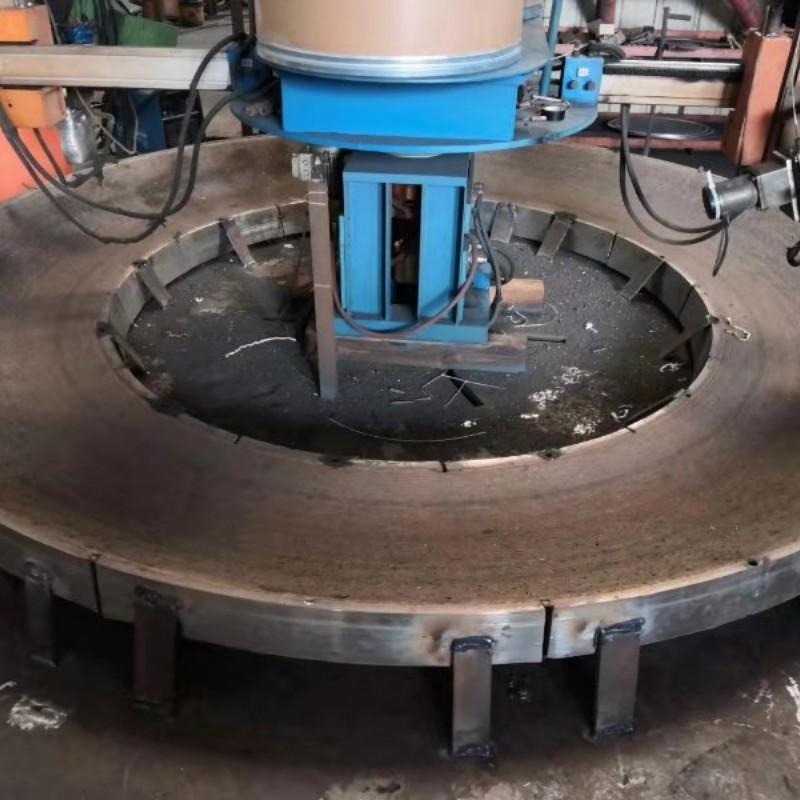

Grinding Table Liner Hardfacing Repair
A hardfacing repair and rebuilding service for grinding table liners, table segments and other high-wear components used in vertical roller mills, combining automated hardfacing equipment and customized welding procedures.
Which Option Fits Your Component?
Standard configurations of the rotary table hardfacing machine, the precision cladding machine and the table liner repair service.
| Machine / Service | Type | Typical Workpiece | Process | Control / Approach |
|---|---|---|---|---|
| JH-360DEG | Rotary grinding table hardfacing machine | Welding diameter 100–6500 mm, load up to 1300 kg | Automated rotary hardfacing | Variable-speed rotation, 300–700 A |
| JH-05PL | Hot-Wire TIG cladding machine | Valve bores Ø70–350 mm, load up to 1000 kg | Hot-Wire TIG overlay welding | Servo X/Z, AVC & constant surface speed |
| Grinding Table Liner Repair | Hardfacing repair & rebuilding service | VRM table liners, table segments and disc liners | Wear-resistant overlay welding | Customized repair solutions |
Working range, welding process and control configuration can be customized according to the workpiece diameter, wear condition and required overlay thickness.
